Hydraulic Operation Waste Management Garbage Truck 5-6m3 5-6cbm

Brand Name : CLW

Model Number : CLW581ETS

Certification : CCC ISO

Place of Origin : Suizhou,China

MOQ : 1 UNIT

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 units/month

Delivery Time : 30 days after received advance payments

Packaging Details : Naked package shipped by bulk ship

Driving model : LHD&RHD

Chassis Brand : HOWO, Dongfeng, Foton, Shacman,ISUZU Swing Arm Garbage Truck

Fuel Type : Diesel

Material : Carbon Steel

Volume : 5000~16000L,5m3,6m3

After-sales service provided : Overseas third-party support available, Online support, Video technical support, Free spare parts, Field maintenance and repair service

Truck type : swing arm garbage truck,Skip Loader Container Garbage Truck

Color & Logo : Customized

Loading Capacity : 3tons, 4tons, 5tons, 3t, 4t, 5t

Wheel Base : 3308

horsepower : 108HP

Engine : CHAOYANG ENGINE

Contact Now

New 5-6m3 5-6cbm Hydraulic Operation Waste Management Garbage Truck

Product description

Swing arm mechanism: It is composed of steel plates and welded in a box-shaped structure.
Hopper: open and sealed. (boat-shaped bucket, square bucket, sealing bucket)
Hydraulic operating system: power take-off, oil pump, manual multi-way reversing valve, one-way hydraulic lock, balance valve, oil pipe, oil tank, etc.
Self-unloading function, hydraulic operation
The bucket is separated from the car body, which can realize the joint operation of one truck and multiple buckets.
Short-distance transportation, such as the cleaning of urban garbage etc.

Hydraulic Operation Waste Management Garbage Truck 5-6m3 5-6cbm

Chassis parameters
Chassis model		EQ1040G47DJAC	Chassis brand	Dongfeng
Overall dimensions		584019802170mm	Wheel base	3308mm
Front/rear wheel track		1438,1486 mm	Front/rear suspension	1800/2695mm
Approach/departure angle		17/14°	Maximum speed	99km/h
Chassis Manufacturer		DONGFENG
Cab	Configuration	single row cab
	Color	Customized
Engine	Model	CYQD32T
	Emission	Euro 2
	Type	6 cylinders, in-line, turbo inter-cooling
	Rated power	108hp
	Displacement	3153ml
	Manufacturer	CHAOYANG
Tire	Size	6.50R16,7.00R16
	Number	6+1 nos
Fuel tank	300L iron oil tank
Front axle	HF 2 tons
Rear axle	ST 3 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	gearbox HW3153
Steering device	Power assisted steering
Steering wheel	LHD&RHD

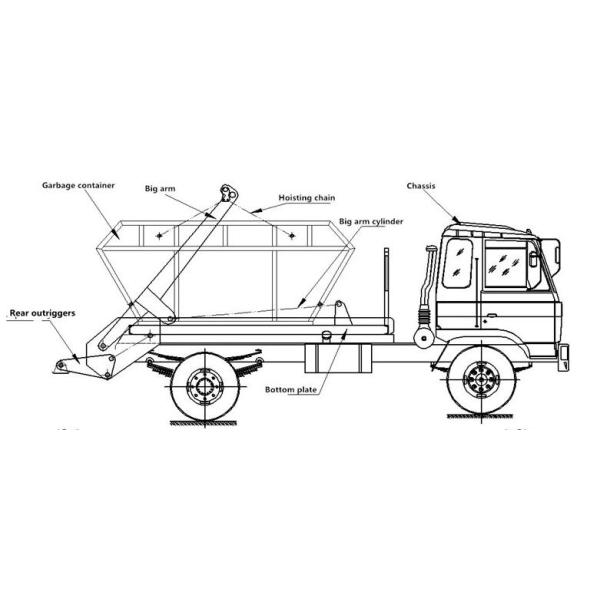

Swing arm garbage truck structure parameters
Garbage container dimensions		Customized	Garbage container volume	5/6m3
Garbage container material		Carbon steel	Side wall	3mm
Bottom plate		4mm	Color and Logo	Optional
Standard configuration	Chassis,sub frame,two balancing valves, two domestic oil cylinders,web plate,one garbage container,rear hydraulic legs,unloading container locking pins.

Our Factory

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen
